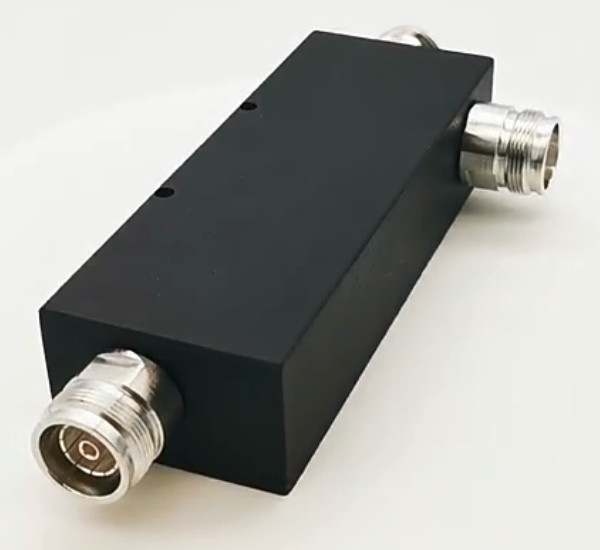

4.3-10 Low PIM 600-3800MHz -155dBc Directional Coupler Outdoor

INQUIRY

BASIC INFO

Electrical Specification Model:RT-DC-638-4310F-155 ( is the dB you need) 4.8/5/6/7/8/10/13/15/20/30dB Coupling OK.
Frequecny Range	600-3800MHz 600-4000MHz
Coupling	6±1dB
Insertion Loss	1.75dB
Isolation	26dB
VSWR	1.30
PIM3	-155dBc@2*43dBm
Power	300W
Impedance	50 ohm
Connector	4.3-10 Female
Temperature	-30℃ - +70℃
Application	Outdoor
Net Weight	0.40Kg
